Yamaha Motor Company was founded in 1955 and for more than seven decades, the world has made some of the most iconic motorcycles ever. From the XT500 and RD350LC to the V-Max and YZF-R7 OW-02, Yamaha has never been removed from pushing the boundaries of motorcycling. But no other model defines the modern era of Yamaha just like the YZF-R1. It once brought about a revolution in the Liter-class sports bike segment with its MotoGP-inspired cross flight motor, stacked transmission and compact Deltabox chassis.
Nowadays the R1 may no longer be the ultimate superbike. It is surpassed by people such as the BMW S 1000 RR, Ducati Panigale V4 and Aprilia RSV4. However, it is still a blistering fast motorcycle. And in its YZF-R1M Avatar it is also decorated with a lightweight carbon fiber body, functional winglets, electronic suspension and a factory data slogger. These functions make the R1M the fastest production that Yamaha has ever built, and this is what it makes, even though it is a bit of an underdog today.
Yamaha R1M starting price: $ 27,699 To give you the most up -to -date and accurate information, the data used to collect this article from authoritative sources, such as Yamaha Motorsports.
The fastest production Yamaha ever made, although electronically limited
Top speed: 186 mph (electronically limited)
The Yamaha R1M is the cream of the crop in the company’s line-up, which is the more track-oriented version of the standard YZF-R1. Yet it is not the most powerful Yamaha ever made; That title belongs to the V-Max. Despite the Power Cruiser that makes almost 200 hp, the R1M comes at the top when the fastest Yamaha engine bike has ever been made. Credit goes to the CP4 Inline Four engine, which produces 197.26 hp, combined with the lightweight Deltabox frame and extensive carbon fiber bodywork. It can easily reach the electronically limited 186 km / h.
Remember that we only look at production Yamaha engine bikes; Otherwise this article would have been about the YZR-M1, Yamaha’s MotoGP prototype. That thing is a rocket on two wheels! Also, Yamaha does not explicitly reveal the top speed of the Yamaha R1M, electronically limited or otherwise. The figures come from various online reports, forums and YouTube videos that show the bike that never cross the 186 MPH (or 299 km / h). Thank you, the gentlemen’s similarity to keep the actual top speed of us!
Legendary CP4 Power, Deltabox Handling and Ohlins Suspension
Food output: 197.26 HP @ 13,500 rpm
In the heart of the YZF-R1M is the CP4-Inline-Vier engine that produces nearly 200 horsepower directly from the showroom. The engine has a MotoGP-derived crankshaft, with a 1-3-2-4 shooting order, which gives the motorcycle a unique character. The crankshaft of the cross flight is the same as inertia forces on the crankshaft and delivers a strong, linear torque with better gear. Not to mention, the crankshaft of the cross flight gives the motorcycle an absolutely mental exhaust nut!
Just like the R1, the R1M also has a slim, compact aluminum Deltabox chassis that is optimized for track-oriented treatment. Where the R1m stands out is the top spectrang. It has the Dynamic Ohlins Electronic Racing Suspension (ERs), including an OHLINS NPX fork, which works in combination with a six-axle Imu to adjust the suspension with exceptional rich quality and feeling. This brings the bike to a completely different level, so that you can make a corner, accelerate or brakes more efficiently, especially when you shoot for top speed or set up round records.
However, that is not all. The performance and top speed of the R1M also owe it to other substantiation, including the premium 10-spoke cast magnesium wheels, which reduce the non-recognized mass and rotation mass, improve acceleration and treatment. Then there are the powerful Bridgestone RS11 tires that offer job-worthy grip levels. Finally, the Brembo-Radial Mounting Protectors, equipped with a high winding and braided steel lines, ensure that you quickly stop a stop after testing the top speed of your bike.
Highlights of the engine
CP4 Motor has lightweight titanium connection rods, inlet valves and forged pistons
Yamaha chip-controlled inlet (YCC-I) adjusts the length of the intake based on engine TPM
Compact rocker-arm valve operation ensures a larger clay lift
Lightweight titanium exhaust and heat shield reduce the weight and centralize the mass
Compact, stacked six-speed baking transmission Featies with close ratio gear
Performance specifications
Engine type | CP4 inline four, liquid-cooled, 4-falves per cylinder |
|---|---|
Displacement | 998cc |
Compression ratio | 13.0: 1 |
Anterior suspension | 43 mm ohlins electronic racing suspension npx fork, fully adjustable, 4.7 in. |
Rear -wheel suspension | Ohlins people monoshock, fully adjustable, 4.7 in. To travel |
Seat height | 33.9 in. |
Wheelbase | 55.3 in. |
Fuel consumption | 33 MPG |
Wet weight | 452 pounds |
A full series of electronic functions and riders aids with GPS -data slogger
The Yamaha R1M also stands out with its extensive list of electronics that contribute to making the bike an incredible track weapon. At the helm of this suite lies the communication control unit of Yamaha, which starts an integrated GPS data gogbook system. This system offers vehicle data recording with course mapping and automatic round timing, so that you can assess your rounds and identify areas for improvement. The position for data logbook registration is the result of the extensive race developments of Yamaha. In particular, it will be useful for intermediary to professional riders who want to shave a few milliseconds from their lap times.

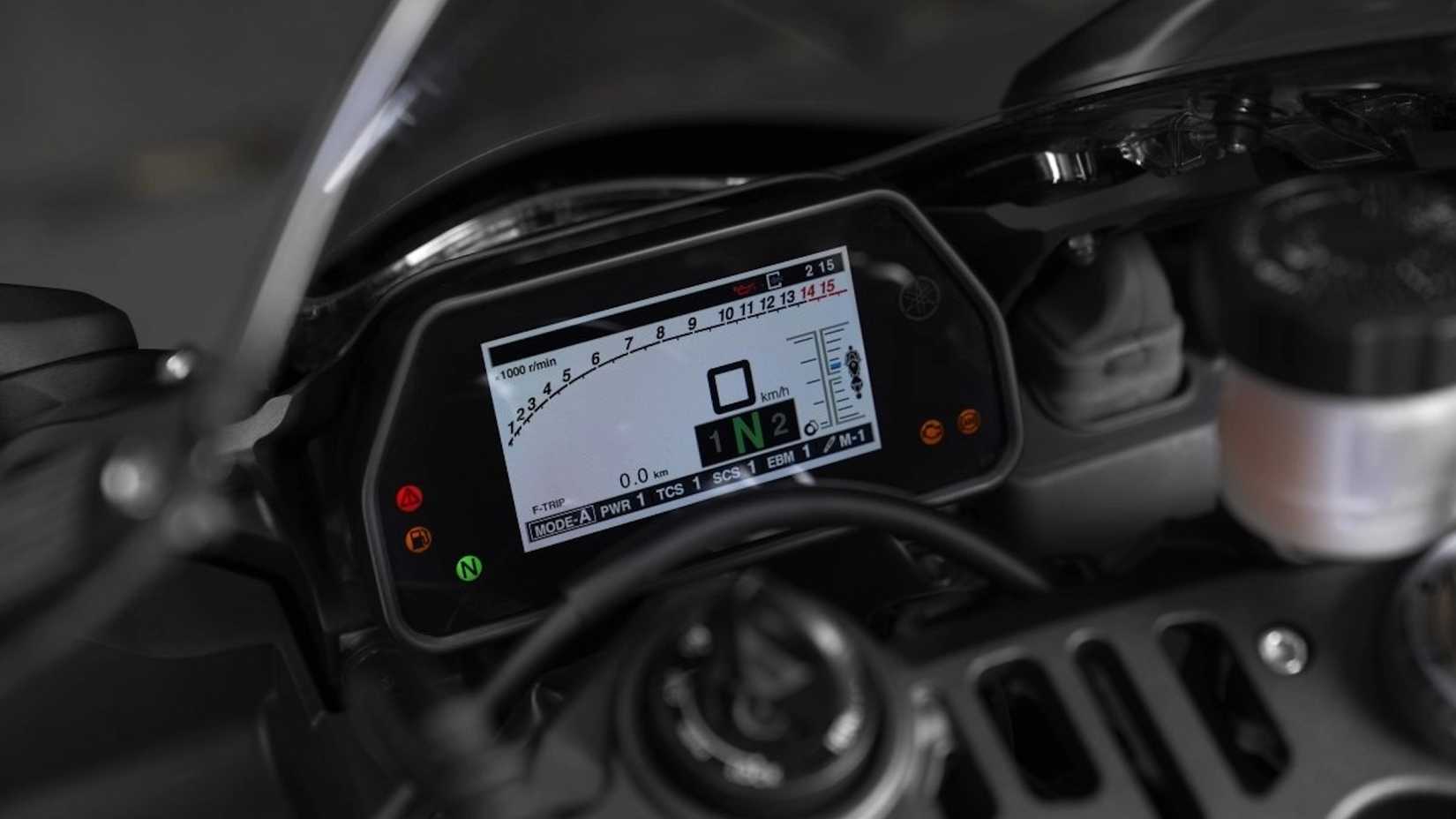

Apart from the data logger, the R1M has an advanced electronics package, including a full-color TFT display, Yamaha Chip Controlled Throttle (YCC-T) Ride-by-Wire system and countless rider tools, such as braking control, engine management and launching structure. These functions ensure that you keep the rubber side on this expensive piece of kit while improving your lap times and you can refine the dynamics of the bike according to your preferences.
Electronic rider tools
Lift control system on four levels (LIF)
Quick Shift System (QSS)
Three levels Launch Control System (LCS)
Four-level DIA control system (SCS)
Lanke corner -sensitive traction control (TCS)
Power Delivery Fashion of four levels (PWR)
Motor brake management on three levels (EBM)
Lank corner -sensitive brake control with ABS
Iconic R-series Styling, more aerodynamic than ever
Although the engine brings speed, the suspension keeps things under control and the electronics keeps the rubber on the floor, the design plays the last part to keep things streamlined. As such, the R1M has the iconic R-series-styling that is unmistakably sharp and aggressive. Despite the fact that it is essentially a decade old silhouette, Yamaha has succeeded in keeping the design fresh in 2025 with a set of MotoGP-inspired winglets and a few other design instructions.
The MotoGP-inspired carbon fiber wings are developed by extensive simulator and on-track tests, creating extra downforce that adds stability and front-end feeling at high speeds or during silage. The winglets are supplemented with an aggressive front cover that reduces the resistance of the frontal area, so that the bicycle can cut through the air at high speeds. As a result, the bicycle reaches its top speed without struggling against the wind or losing stability under hard acceleration or brakes.
Design highlights
Iconic R-series Styling includes beautifully integrated bodywork with slim, stylish lines and an aggressive aerodynamic profile

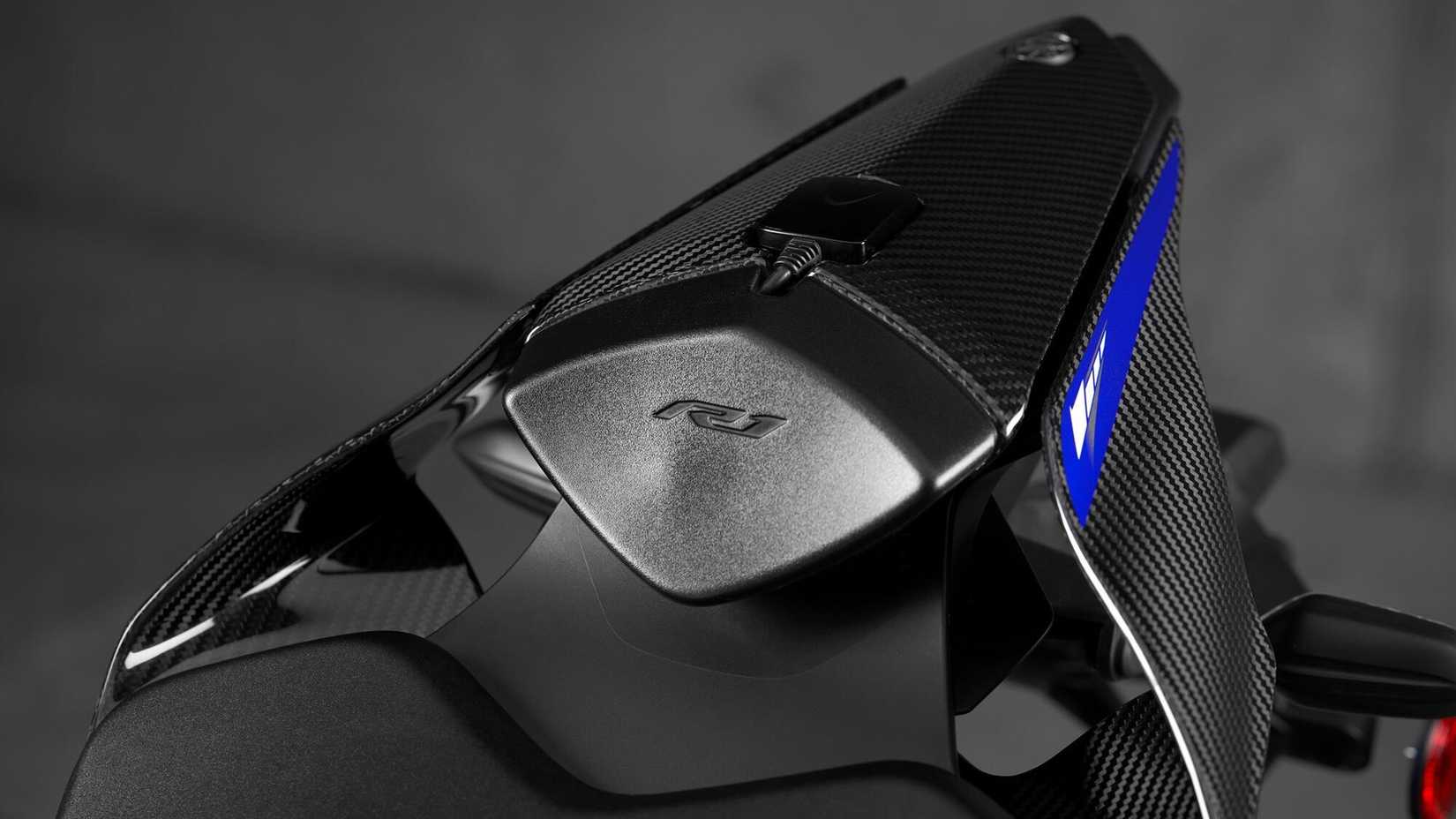

Full bodywork of carbon fiber, including carbon windows tubs, side tubs, front fender and tail area

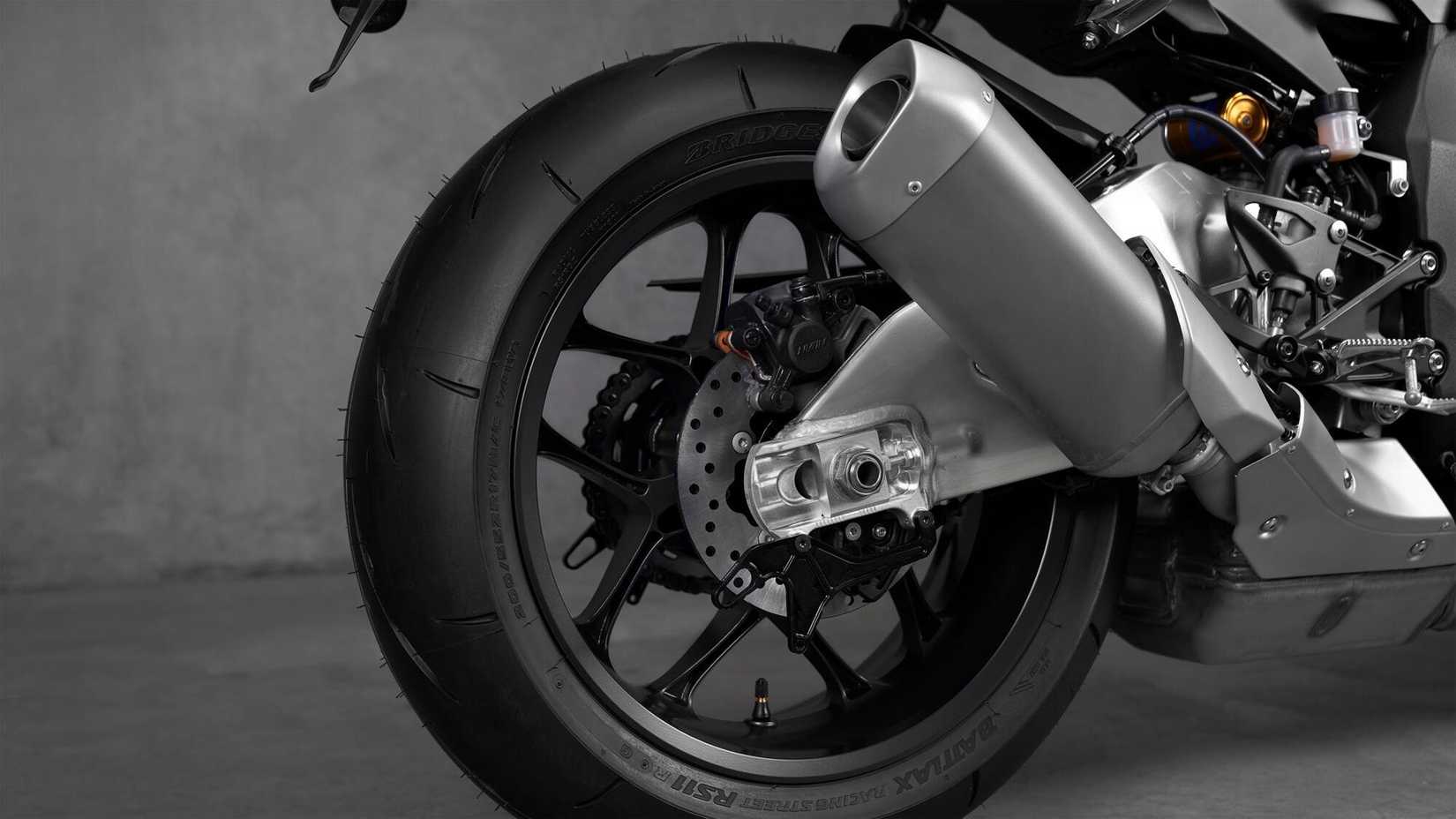

Aggressive design is linked to a polished aluminum rear warm
Top of the Airbox -has a unique, serialized numbered R1m -Badge
Design developed by extensive simulator and on-track tests
