Think of “Harley-Davidson” and what comes to mind is a low-dish cruiser with so much chromium that you need to look at it, or a tourer that is more comfortable than some cars for a long travel or even Arnold Schwarzenegger. What does not come to mind are the kind of roads that sports cyclists love. That is, flowing asphalt with many corners.

However, there has been a Renaissance in Harley in the last decade and it has renewed its products so that they are more all -rounders. The highlight of this renewal was the Pan America 1250 Touring engine bike. It is all we don’t expect to be a Harley, chain drive and such. Earlier this year, the Motor Co. On this direction by launching the pan America 1250 pcs, which is aimed at asphalt driving thanks to a number of changes about the standard Pan America 1250. This is the Harley-Davidson that actually deals with twisties.

To give you the most up-to-date and accurate information, the data used to collect this article from authoritative sources, such as Harley-Davidson Motorcycles.

The Pan America 1250 ST can actually deal with twisties

Price: $ 19,999

2025 Harley-Davidson Pan America ST in Action
Harley-Davidson

The America Pan has been around for five years, but it has focused on an adventurous tourer. Harley-Davidson thought it was time for a change, and that change came earlier this year with the addition of the ‘St’ variant. The Pan America 1250 st, full sports tourer, with 17-inch alloy wheels, sticky asphalt tires, a reduced suspension (and therefore lower seat height), a chair from a piece and a shorter smoked windshield to make a better sports tourer. In combination with the powerful engine, six-axis imu, strong brakes, modern chassis and electronics that help, this makes it the Harley-Davidson that can actually become around.

Why we chose the Harley-Davidson Pan America 1250 ST

  • It is low for a pan America!

  • 17-inch wheels with sticky asphalt tires

  • Full electronics suite

  • Standard two -way Quickshifter

  • 150 hp

Driven by a revolutionary V-twin engine of 60 degrees

2025 Harley-Davidson Pan America 1250 St Motor
2025 Harley-Davidson Pan America 1250 St Motor
Harley-Davidson

The Pan America 1250 ST uses the same engine and the same state of tunes as the rest of the America range pan, including the CVO Pan America. That gives you a hint of how capable it is. This max 1252 cc V-twin revolution is completely cooled (a definition required for HD engines), has overhead camshafts without pushrods and variable valve on all its valves. The result is a strong wave of torque and a large peak power combined. At 150 hp there are not too many touring bikes with more power-it is just as much power as the four-cylinder Suzuki GSX-S1000GX!

Harley-Davidson Pan America 1250 St engine specifications

Motor configuration

‘Revolution Max 1250’ 60-degree V-twin, Liquid Cooling, Dohc, 4 valves per cylinder, VVT on all valves

Displacement

1,250 cc

Boring x Battle

105 x 72.3 mm

Compression ratio

13: 1

Current

149 HP @ 8,750 rpm

Couple

91 LB-FT @ 6.750 rpm

Fuel system

Electronic consecutive injection with gate fuel

Transfer

Manual 6-speed gearbox, assist and slipper coupling, standard two-way Quickshifter

Final ride

Chain drive

The six -speed gearbox has a two -way Quickshifter as a standard function at the America ST Pan, and a final chain drive remains unique under Harleys. The only other HD with a final chain drive is the CVO Road Glide RR, and there is nothing standard on that bike. A six-axis IMU makes a bend stream for the bend, bends for drag-torque slip control and Wheelie mitigation possible.

The chassis is great for Tarmac Touring

2025 Harley-Davidson Pan America St-Bends on the road
2025 Harley-Davidson Pan America St-Bends on the road
Harley-Davidson

The chassis of the Pan America chassis have been some adjustments to make the ST more suitable for asphalt obligation. The two big things are the reduced suspension, now at 6.75 inches, so that the bike can sit lower on the floor for better handling and a more approachable seat height. The chair itself has been turned into a flat unit in one piece instead of the stepped two -part unit of the Special and CVO. The rear pre -tension can be adjusted electronically and compression and rebound adjustment can be done manually at both ends.

Harley-Davidson Pan America 1250 ST-Chassis Specifications and Dimensions

Chassis

Steel trellisframe, engine as a stressed member

Anterior suspension

47 mm Showa ‘Balance Free Fork’ inverted front fork, electronically adjustable pre -tension, manually adjustable compression and rebound damping; 6.75 inch trips

Rear -wheel suspension

Showa Piggyback Reservoir Monoshock, electronically adjustable pre -tension, manually adjustable compression and rebound damping; 6.75 inches travel. Automatic reduction at low speeds

Front tire and wheel

120/70 ZR17

Rear tire and wheel

180/55 ZR17

Prinkle

Double Hub mounted 320 mm Discs with Brembo Monobloc Radially mounted four-piston fixed calipers

Brake

280 mm disk with brembo a few piston floating caliper

Capacity of fuel tank

5.6 Gallons

Length/width/weight

88.2/35.3/52.4 Inch

Wheelbase

61.8 inch

Rake

25 degrees

Path

3,7 inches

Seat height

31.7 inch (Unchanged) /29.4 inch (reduced suspension)

Primer

6.7 inches

Pavement weight

542 LBS (Nat)

Showa offers the suspension while Brembo offers the brakes. The fronts are solid 320 mm double discs with monobloc radial calipers – but the pan America needs good brakes with a curb weight of almost 550 pounds.

The six-axis IMU offers bends, rear wheel lift limit, hill column and linked brakes. Harley-Davidson also protrudes the Pan America 1250 ST with a tire pressure monitoring system.

Harley-Davidson Pan America 1250 ST functions

A good function set too

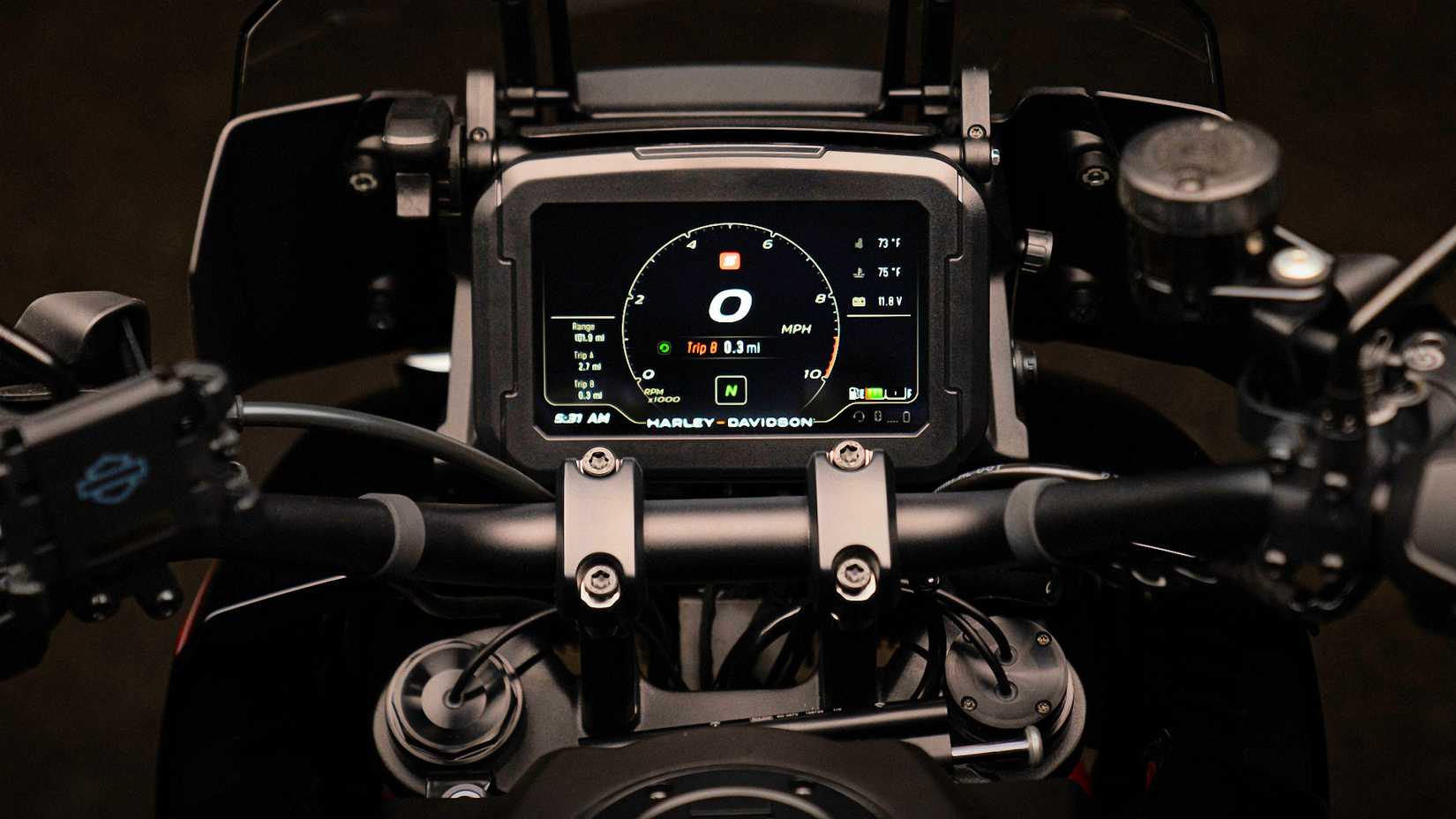

2024 Harley-Davidson CVO Pan America TFT Display Close-Up Detail
2024 Harley-Davidson CVO Pan America TFT Display Close-Up Detail
Harley-Davidson

The focus of the Pan America ST on asphalt means that it has the changes marked above. But it also retains the good bits-one 6.8-inch TFT color display that offers Bluetooth connectivity and navigation is standard. Other standard functions are a two-way Quickshifter, a piece of chair and a six-axle imu. The ‘Sharknose’ Kuip houses an adaptive LED head lamp. The adaptive driving height is also standard for the ST in North -American markets, which means that the suspension lowers at walking speeds to make it easier to maneuver.

Harley-Davidson Pan America 1250 St Remarkable functions

  • 6.8-inch TFT color display

  • Bluetooth and navigation are included

  • Shortened, smoked windshield

  • Standard two -way Quickshifter

  • Chair of one piece

  • Lower suspension and seat height

  • Standard adaptive riding height

  • Six -axis imu

Harley-Davidson Pan America 1250 ST competition

Some very big names

BMW S 1000 XR
BMW S 1000 XR shot in white and dark blue driving above a top
BMW

The America 1250 pcs are unique, yes, but it goes against incredibly heavy competition. First, let’s handle the value competitions: the Kawasaki Versys 1100 and Suzuki GSX-S1000GX+ offer both inline four-cylinder engines and a similar function set. However, they are built on reliable platforms and will be cheaper to maintain. The big guns are the 170 hp BMW S 1000 XR and the 175-HP KTM 1290 Super Duke GT. Both are many more premium brands with much more performance and an equal number of functions for similar prices. The S 1000 XR -Basis Prize is even a few thousand dollars less than the Harley. That makes choosing the pan America above the others incredibly difficult.

Harley-Davidson Pan America 1250 ST vs. rivals

Model

Harley-Davidson Pan America 1250 ST

KTM 1290 Super Duke GT

BMW S 1000 XR

Suzuki GSX-S1000GX+

Kawasaki Versys 1100 LT SE ABS

Price

$ 19,999

$ 20,499

$ 17,995

$ 18,599

$ 19,499

Engine

Revolution max 1250 60-degree V-twin, Dual VVT

60-degree V-twin

Inline four -cylinder

Inline four -cylinder

Inline four -cylinder

Displacement

1,250 cc

1,301 cc

999 cc

999 cc

1.099 cc

Current

145 hp @ 8,750 rpm

172.6 HP @ 9,750 rpm

170 hp @ 11,000 rpm

152 HP @ 11,000 rpm

133 hp @ 9,000 rpm

Couple

95 LB-FT @ 6.750 rpm

104 LB-FT @ 7,000 rpm

84 LB-FT @ 9,250 rpm

78.2 LB-FT @ 9,250 rpm

82.5 LB-FT @ 7,600 rpm

CURB Weight (Nat)

542 pounds

492 pounds

500 LBS

511 pounds

571 pounds
